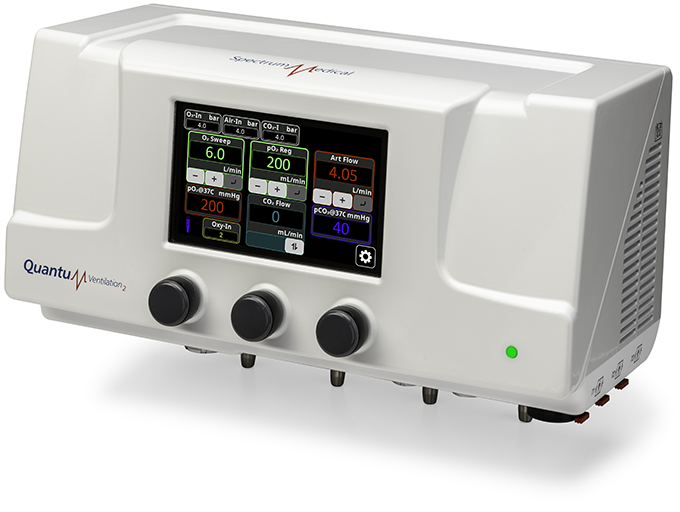

The Quantum Ventilation System

The Quantum Ventilation System is a major breakthrough in the safe delivery of patient ventilation during clinical procedures requiring extracorporeal V/A circulation.  With its unique combination of world-first technologies the Quantum Ventilation System offers clinicians the opportunity to deploy a conventional atmospheric ventilation strategy across a wide ranging patient population.



 ventilation-new-spectrum-medical

One System - Six Leading Solutions from Spectrum Medical

A "single system, six solutions" design strategy ensures that the Quantum Ventilation System will support multiple therapies across a wide ranging patient population to ensure maximum utilization within the clinical environment.

Technical Solutions Ventilation Capabilities
Patient Blending

Single Gas Outlet:   0.025 to 10 L/m   (O, CO2 & Air)

(Maximum 20 liters at 60% FiO2)

Dual Gas Outlets:   0.025 to 20 L/m   (O2 , CO2)

(For use with Spectrum Medical's new ventilator technology)

Patient Ventilation Decision Support & Auto Regulation of PaO2 and PaCO2
Integrated Vacuum Control Auto regulation of WAG Flow Pressure Control (VAVD)
Ventilation Safety Technologies Incoming Gas Concentrations and System Pressures
Vacuum Pressure Management
Integrated Sensing Solutions

Included as standard, the "Quantum Sensor Hub" offers overall system flexibility in the clinical environment:

3 Temperatures 3 Flows (incl: Bubble Detection)
3 Pressures 1 Level (two position)

1 Anesthesia Gas — Exhaust Sensor

Non-Invasive Diagnostics MAC, Ventilation Diagnostics and Calculated Physiologic Indices
